Timo-D
Timo-D
40W  Indirect↑3120lm  Direct↓2080lm
Timo-D
Timo-D
Timo-D
Introduction

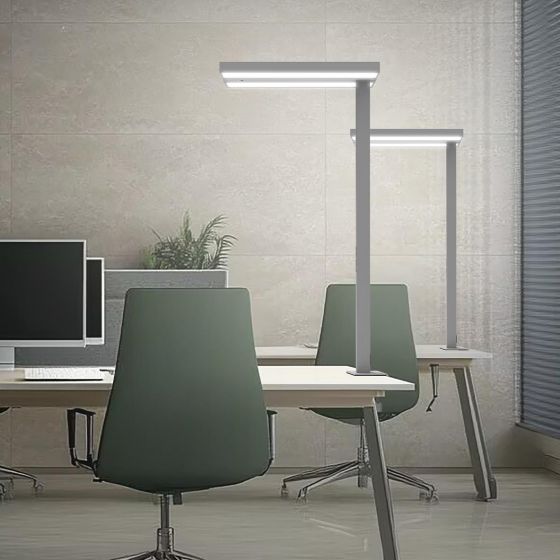

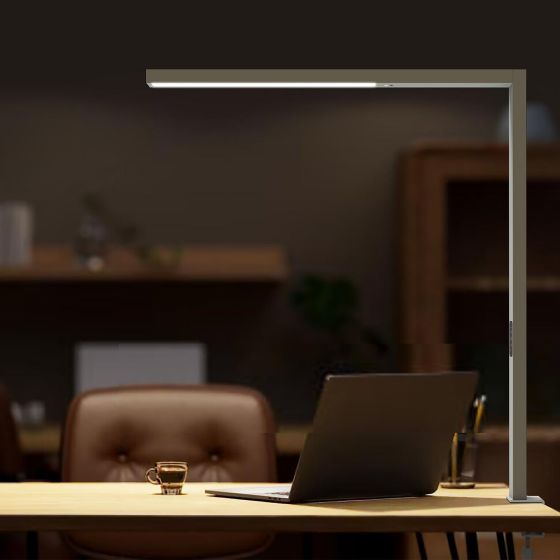

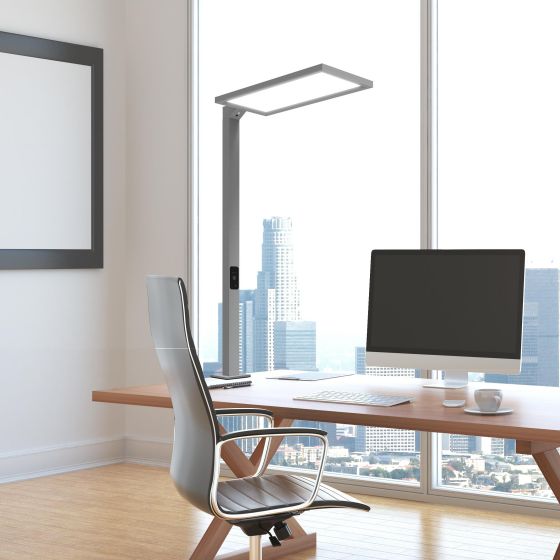

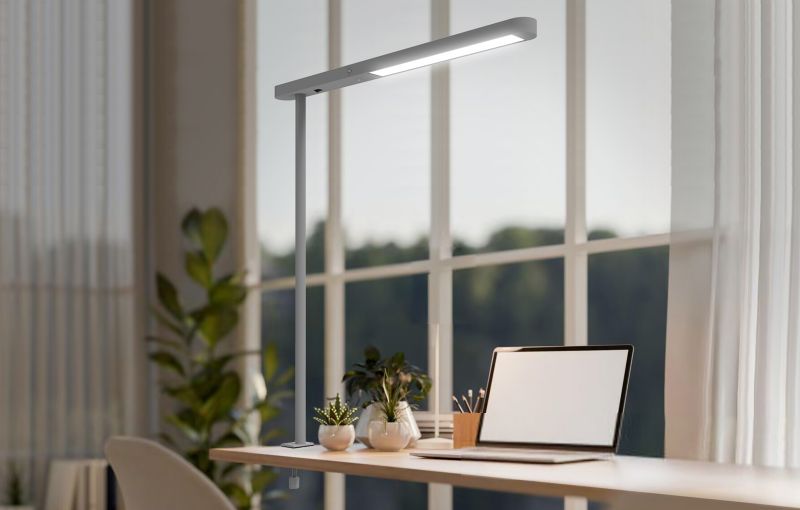

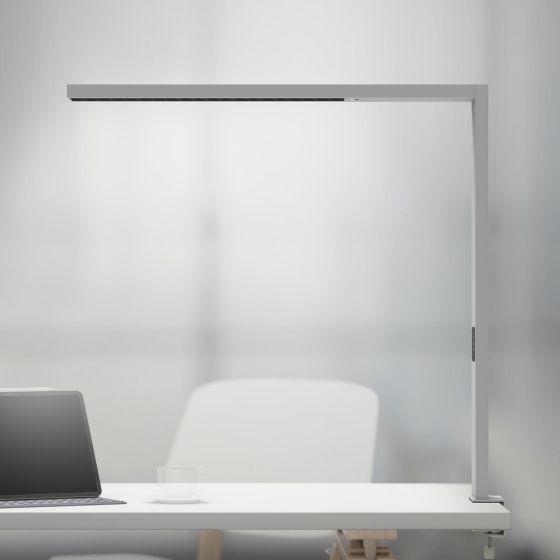

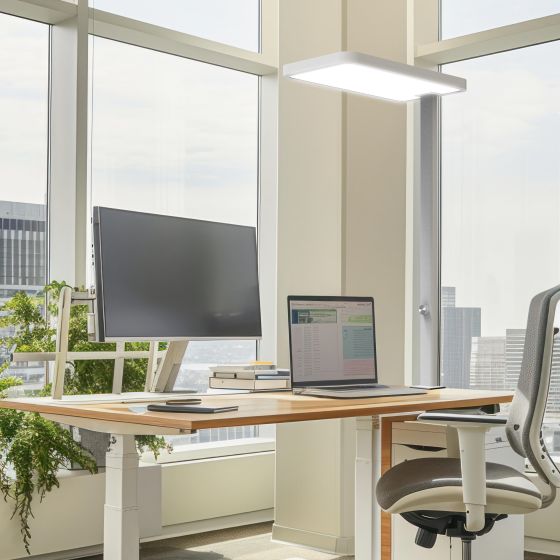

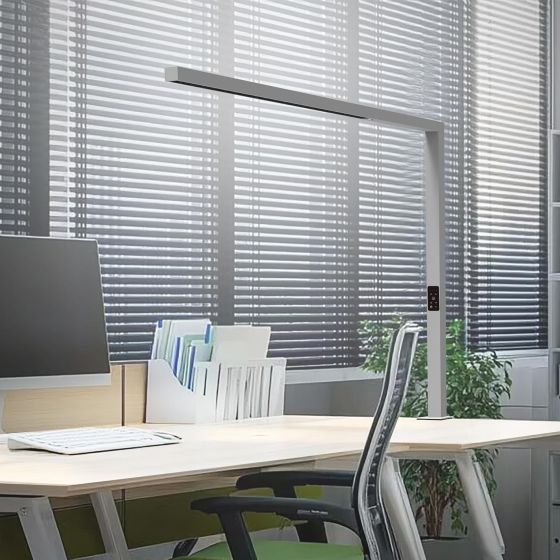

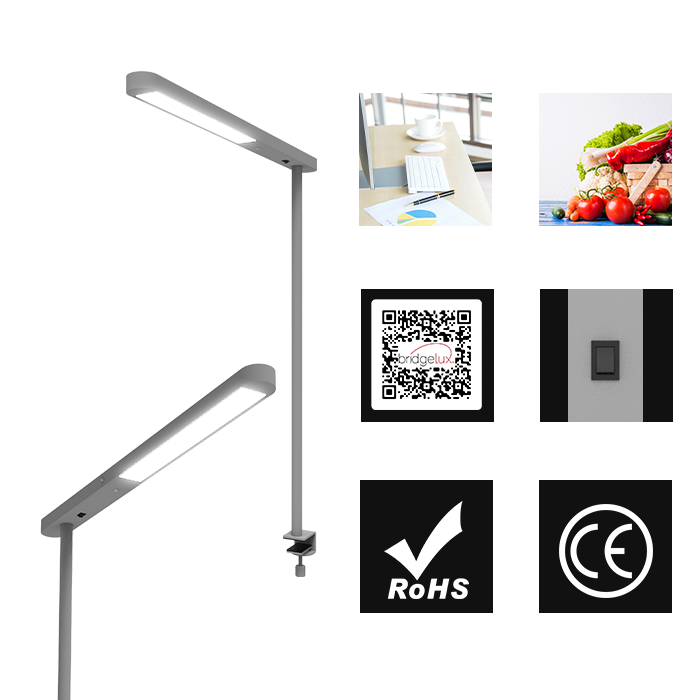

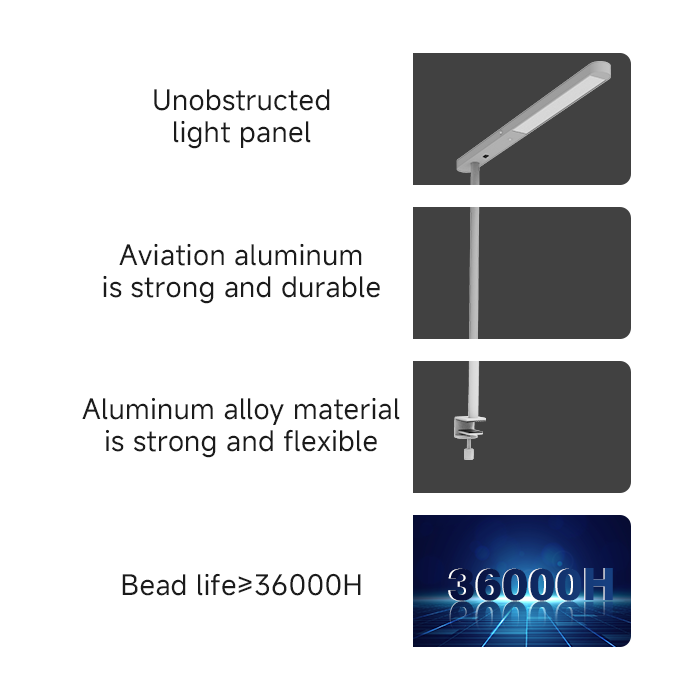

Its simple appearance design with unique lines, the lamp body adopts exquisite powder spraying technology, high heat dissipation, double-sided lighting, UGR <19, comfortable eye protection, 120LM/W ultra-high light efficiency, no dark area, not only simple to install but also easy to operate, solid desktop installation structure, ensure that the lamp is stable and not tilted, can be used in a variety of office scenes,Adopting LED light source, it has lower energy consumption and longer service life. This not only helps to reduce electricity bills, but also reduces the impact on the environment.
Specification
Product Series
Timo-D
Model Number
BR-FS0015-40W-X04
Size
970*70*1263 mm
Lighting effect
130lm/W
Input Power
40w

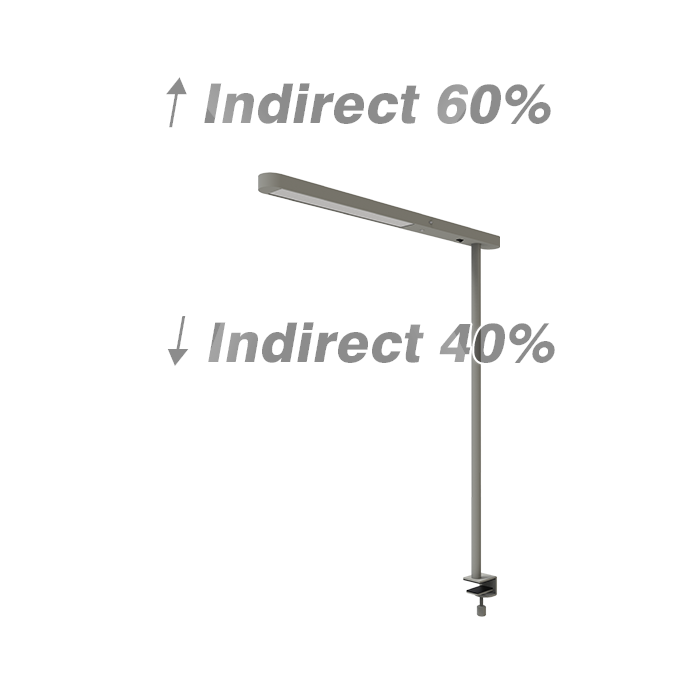

Luminous ratio
Indirect↑60%; Direct↓40%
Luminous Flux
Indirect↑3120lm; Direct↓2080lm
Housing Color
RAL7038A(white/black available)
CRI (Ra)
≥80
UGR
<19
Dimming type
N/A
Working Lifetime(Hour)
≥36000H
Color Temperature
3000K/4000K/5000K/6000K
Light Source
SMD2835-Everlight
Certification
CE/ROHS/FCC/BSCI
Beam angle
Indirect↑112°; Direct↓70°
Download
Specification
Installation
Testing Report
1.03MB
190.83KB
217.81KB
